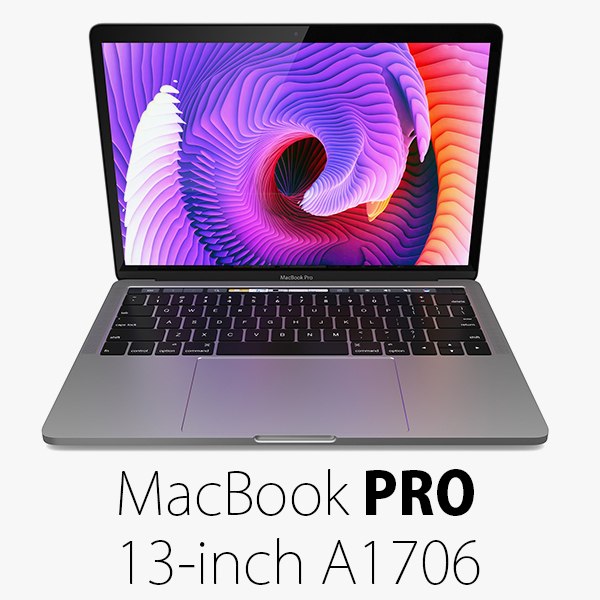

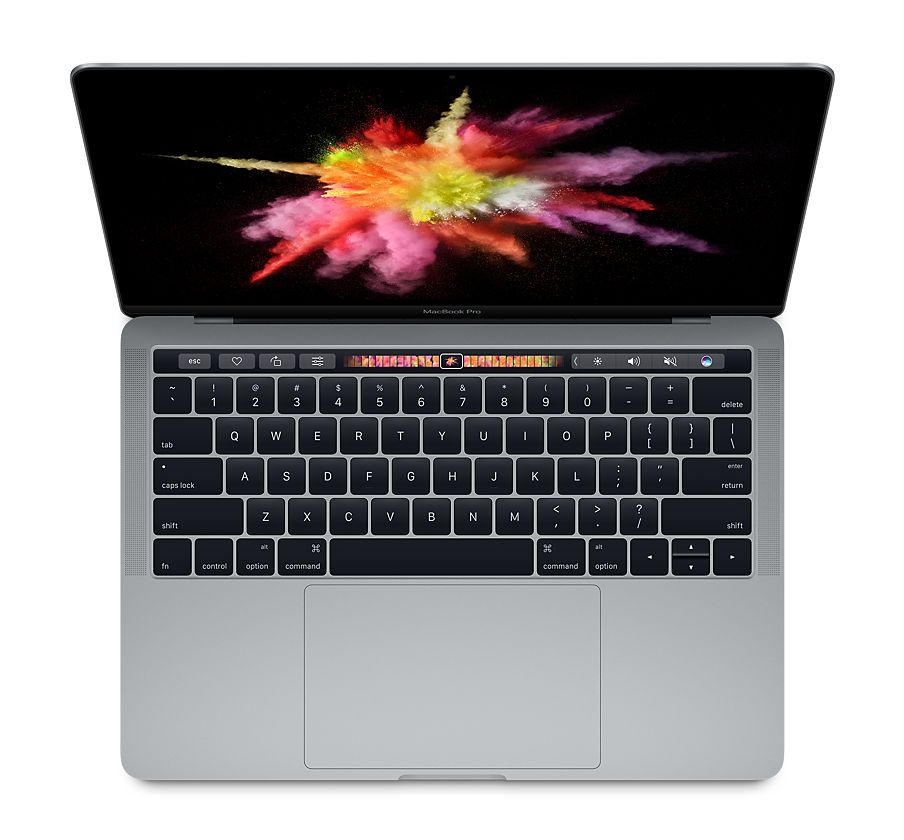

MacBook Pro 13-inch (A1706,2017)

Touch Bar

• Touch Bar with integrated Touch ID sensor

Finish

• Space Gray

Display

• Retina display

• 13.3-inch (diagonal) LED-backlit display with IPS technology; 2560-by-1600 native resolution at 227 pixels per inch with support for millions of colors

• Supported scaled resolutions:

  • 1680 by 1050

  • 1440 by 900

  • 1024 by 640

• 500 nits brightness

• Wide color (P3)

Processor

• 3.1GHz dual-core Intel Core i5, Turbo Boost up to 3.5GHz, with 64MB of eDRAM

  • Configurable to 3.3GHz dual-core Intel Core i5, Turbo Boost up to 3.7GHz, with 64MB of eDRAM; or 3.5GHz dual-core Intel Core i7, Turbo Boost up to 4.0GHz, with 64MB of eDRAM

Storage1

• 256GB

  • SSD

Memory

• Configurable to 8GB of memory

Graphics

• Intel Iris Plus Graphics 650

Charging and Expansion

Four Thunderbolt 3 (USB-C) ports with support for:

• Charging

• DisplayPort

• Thunderbolt (up to 40 Gbps)

• USB 3.1 Gen 2 (up to 10 Gbps)

Keyboard and Trackpad

• Full-size backlit keyboard with:

  • 64 (U.S.) or 65 (ISO) keys including 4 arrow keys

  • Touch Bar with integrated Touch ID sensor

  • Ambient light sensor

  • Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

• Wi-Fi

  • 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible

• Bluetooth

  • Bluetooth 4.2 wireless technology

Camera

• 720p FaceTime HD camera

Video Support

Simultaneously supports full native resolution on the built-in display at millions of colors and:

• One display with 5120-by-2880 resolution at 60Hz at over a billion colors

• Up to two displays with 4096-by-2304 resolution at 60Hz at millions of colors

• Up to two displays with 3840-by-2160 resolution at 60Hz at over a billion colors

Thunderbolt 3 digital video output

• Native DisplayPort output over USB‑C

• VGA, HDMI, and Thunderbolt 2 output supported using adapters (sold separately)

Audio

• Stereo speakers with high dynamic range

• Three microphones

• 3.5 mm headphone jack

Battery and Power2

• Up to 10 hours wireless web

• Up to 10 hours iTunes movie playback

• Up to 30 days of standby time

• Built-in 49.2-watt-hour lithium-polymer battery

• 61W USB-C Power Adapter

Electrical and Operating Requirements

• Line voltage: 100V to 240V AC

• Frequency: 50Hz to 60Hz

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –13° to 113° F (–25° to 45° C)

• Relative humidity: 0% to 90% noncondensing

• Operating altitude: tested up to 10,000 feet

• Maximum storage altitude: 15,000 feet

• Maximum shipping altitude: 35,000 feet

Size and Weight

• Height: 0.59 inch (1.49 cm)

• Width: 11.97 inches (30.41 cm)

• Depth: 8.36 inches (21.24 cm)

• Weight: 3.02 pounds (1.37 kg)3

Features include:

• VoiceOver

• Zoom

• Increase Contrast

• Reduce Motion

• Siri and Dictation

• Switch Control

• Closed Captions

• Text to Speech

Built-in Apps4

• Photos

• iMovie

• GarageBand

• Pages

• Numbers

• Keynote

• Siri

• Safari

• Mail

• FaceTime

• Messages

• Maps

• Notes

• Calendar

• Contacts

• Reminders

• Photo Booth

• Preview

• iTunes

• iBooks

• App Store

• Time Machine

What’s in the Box

• 13-inch MacBook Pro

• 61W USB-C Power Adapter*

• USB-C Charge Cable (2 m)*
